1. Essential Concepts and Process Categories

1.1 Definition and Core System

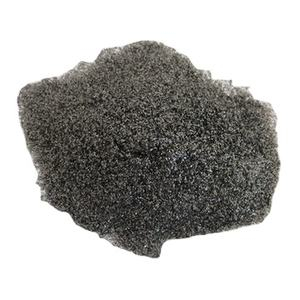

(3d printing alloy powder)

Steel 3D printing, also known as steel additive manufacturing (AM), is a layer-by-layer manufacture technique that constructs three-dimensional metallic components directly from digital designs using powdered or wire feedstock.

Unlike subtractive techniques such as milling or turning, which get rid of product to attain form, metal AM includes product just where required, enabling unprecedented geometric complexity with minimal waste.

The process begins with a 3D CAD version cut into thin straight layers (typically 20– 100 µm thick). A high-energy resource– laser or electron beam of light– uniquely melts or merges metal bits according to each layer’s cross-section, which strengthens upon cooling to create a thick strong.

This cycle repeats until the full part is built, frequently within an inert environment (argon or nitrogen) to prevent oxidation of responsive alloys like titanium or aluminum.

The resulting microstructure, mechanical properties, and surface coating are controlled by thermal history, scan approach, and material attributes, needing exact control of procedure criteria.

1.2 Significant Metal AM Technologies

The two dominant powder-bed fusion (PBF) technologies are Selective Laser Melting (SLM) and Electron Light Beam Melting (EBM).

SLM makes use of a high-power fiber laser (normally 200– 1000 W) to fully melt steel powder in an argon-filled chamber, generating near-full thickness (> 99.5%) get rid of great feature resolution and smooth surfaces.

EBM employs a high-voltage electron beam in a vacuum environment, running at higher develop temperature levels (600– 1000 ° C), which minimizes residual stress and allows crack-resistant handling of fragile alloys like Ti-6Al-4V or Inconel 718.

Past PBF, Directed Power Deposition (DED)– consisting of Laser Metal Deposition (LMD) and Cable Arc Additive Production (WAAM)– feeds steel powder or wire into a liquified pool created by a laser, plasma, or electric arc, appropriate for massive repair services or near-net-shape parts.

Binder Jetting, though less fully grown for steels, involves transferring a fluid binding agent onto steel powder layers, complied with by sintering in a furnace; it provides broadband yet reduced thickness and dimensional precision.

Each modern technology stabilizes compromises in resolution, construct price, material compatibility, and post-processing needs, assisting choice based on application needs.

2. Materials and Metallurgical Considerations

2.1 Typical Alloys and Their Applications

Steel 3D printing sustains a wide variety of engineering alloys, consisting of stainless-steels (e.g., 316L, 17-4PH), tool steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), light weight aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).

Stainless-steels use rust resistance and moderate stamina for fluidic manifolds and clinical tools.

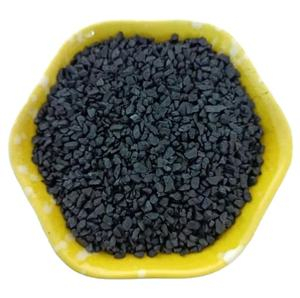

(3d printing alloy powder)

Nickel superalloys excel in high-temperature environments such as generator blades and rocket nozzles because of their creep resistance and oxidation stability.

Titanium alloys incorporate high strength-to-density proportions with biocompatibility, making them perfect for aerospace braces and orthopedic implants.

Light weight aluminum alloys make it possible for lightweight architectural components in automotive and drone applications, though their high reflectivity and thermal conductivity posture challenges for laser absorption and melt pool security.

Material advancement continues with high-entropy alloys (HEAs) and functionally rated make-ups that transition homes within a solitary component.

2.2 Microstructure and Post-Processing Needs

The fast home heating and cooling cycles in steel AM produce special microstructures– often great mobile dendrites or columnar grains lined up with warm flow– that differ dramatically from actors or functioned counterparts.

While this can boost stamina with grain refinement, it might likewise introduce anisotropy, porosity, or recurring tensions that jeopardize fatigue performance.

As a result, nearly all steel AM parts require post-processing: stress and anxiety relief annealing to decrease distortion, warm isostatic pressing (HIP) to shut internal pores, machining for crucial resistances, and surface ending up (e.g., electropolishing, shot peening) to enhance tiredness life.

Heat treatments are tailored to alloy systems– for instance, service aging for 17-4PH to achieve rainfall hardening, or beta annealing for Ti-6Al-4V to enhance ductility.

Quality assurance counts on non-destructive testing (NDT) such as X-ray calculated tomography (CT) and ultrasonic examination to discover interior defects unseen to the eye.

3. Layout Liberty and Industrial Impact

3.1 Geometric Advancement and Useful Assimilation

Metal 3D printing opens layout paradigms impossible with traditional production, such as interior conformal cooling channels in shot mold and mildews, lattice frameworks for weight reduction, and topology-optimized lots paths that reduce material usage.

Parts that as soon as called for setting up from dozens of components can currently be printed as monolithic devices, decreasing joints, bolts, and potential failing factors.

This useful integration enhances dependability in aerospace and medical gadgets while cutting supply chain complexity and supply prices.

Generative design algorithms, paired with simulation-driven optimization, instantly produce natural shapes that satisfy efficiency targets under real-world loads, pressing the borders of performance.

Personalization at range becomes practical– oral crowns, patient-specific implants, and bespoke aerospace fittings can be generated financially without retooling.

3.2 Sector-Specific Adoption and Financial Worth

Aerospace leads fostering, with business like GE Air travel printing gas nozzles for LEAP engines– combining 20 parts right into one, lowering weight by 25%, and boosting durability fivefold.

Clinical tool makers leverage AM for porous hip stems that encourage bone ingrowth and cranial plates matching patient composition from CT scans.

Automotive firms make use of metal AM for quick prototyping, light-weight brackets, and high-performance auto racing components where performance outweighs price.

Tooling markets take advantage of conformally cooled down molds that cut cycle times by as much as 70%, boosting efficiency in mass production.

While maker costs stay high (200k– 2M), decreasing rates, boosted throughput, and accredited product databases are increasing ease of access to mid-sized ventures and solution bureaus.

4. Difficulties and Future Directions

4.1 Technical and Certification Barriers

Regardless of progress, metal AM faces difficulties in repeatability, qualification, and standardization.

Minor variations in powder chemistry, wetness web content, or laser emphasis can modify mechanical residential or commercial properties, demanding rigorous procedure control and in-situ monitoring (e.g., thaw swimming pool video cameras, acoustic sensing units).

Accreditation for safety-critical applications– specifically in aviation and nuclear fields– needs substantial analytical validation under structures like ASTM F42, ISO/ASTM 52900, and NADCAP, which is time-consuming and expensive.

Powder reuse procedures, contamination threats, and absence of universal material requirements further make complex commercial scaling.

Initiatives are underway to establish digital doubles that link process criteria to part efficiency, making it possible for anticipating quality control and traceability.

4.2 Arising Fads and Next-Generation Solutions

Future advancements include multi-laser systems (4– 12 lasers) that dramatically raise build rates, hybrid equipments integrating AM with CNC machining in one platform, and in-situ alloying for custom-made make-ups.

Artificial intelligence is being integrated for real-time issue detection and flexible parameter correction throughout printing.

Sustainable efforts focus on closed-loop powder recycling, energy-efficient beam of light sources, and life cycle evaluations to evaluate ecological benefits over standard approaches.

Research into ultrafast lasers, cool spray AM, and magnetic field-assisted printing may get over existing restrictions in reflectivity, residual tension, and grain positioning control.

As these innovations develop, metal 3D printing will change from a niche prototyping tool to a mainstream manufacturing technique– reshaping just how high-value steel parts are developed, produced, and released throughout sectors.
