1. Product Science and Structural Stability
1.1 Make-up and Crystalline Design

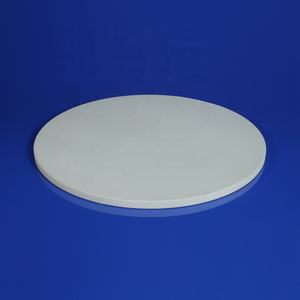

(Alumina Ceramic Baking Dish)
Alumina ceramic cooking recipes are fabricated from aluminum oxide (Al two O TWO), a polycrystalline ceramic product normally containing 90– 99.5% pure alumina, with minor enhancements of silica, magnesia, or clay minerals to aid sintering and control microstructure.
The key crystalline phase is alpha-alumina (α-Al ₂ O TWO), which embraces a hexagonal close-packed lattice framework understood for its outstanding stability, solidity, and resistance to chemical deterioration.
Throughout manufacturing, raw alumina powder is shaped and discharged at heats (1300– 1600 ° C), promoting densification through solid-state or liquid-phase sintering, leading to a fine-grained, interlocked microstructure.
This microstructure conveys high mechanical toughness and tightness, with flexural strengths ranging from 250 to 400 MPa, much going beyond those of conventional porcelain or stoneware.
The lack of porosity in completely dense alumina porcelains stops fluid absorption and inhibits microbial development, making them naturally sanitary and very easy to clean.
Unlike glass or lower-grade porcelains that may consist of amorphous stages vulnerable to thermal shock, high-alumina ceramics exhibit exceptional architectural coherence under repeated heating and cooling cycles.
1.2 Thermal Security and Warmth Distribution
One of the most vital benefits of alumina ceramic in cooking applications is its exceptional thermal security.
Alumina maintains architectural honesty as much as 1700 ° C, well beyond the operational series of house ovens (usually 200– 260 ° C), making sure lasting toughness and safety.
Its thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) is modest, allowing the product to stand up to rapid temperature level adjustments without fracturing, supplied thermal gradients are not extreme.
When preheated slowly, alumina meals withstand thermal shock successfully, a vital demand for transitioning from fridge to oven or the other way around.
Moreover, alumina possesses relatively high thermal conductivity for a ceramic– around 20– 30 W/(m · K)– which allows extra uniform warm distribution across the meal compared to conventional porcelains (5– 10 W/(m · K) )or glass (~ 1 W/(m · K)).
This improved conductivity lowers locations and promotes even browning and cooking, boosting food high quality and consistency.
The product also exhibits exceptional emissivity, successfully emitting warmth to the food surface area, which adds to preferable Maillard responses and crust development in baked items.
2. Production Refine and Quality Assurance
2.1 Developing and Sintering Methods
( Alumina Ceramic Baking Dish)
The production of alumina ceramic baking meals starts with the preparation of an uniform slurry or powder blend, usually composed of calcined alumina, binders, and plasticizers to make sure workability.
Usual creating techniques consist of slip spreading, where the slurry is poured right into porous plaster molds, and uniaxial or isostatic pushing, which small the powder right into eco-friendly bodies with specified shapes.
These eco-friendly forms are then dried to eliminate moisture and carefully debound to eliminate organic ingredients before entering the sintering heating system.
Sintering is the most critical point, throughout which fragments bond through diffusion systems, causing significant shrinkage (15– 25%) and pore removal.
Precise control of temperature, time, and atmosphere makes certain complete densification and stops bending or cracking.
Some producers use pressure-assisted sintering strategies such as warm pushing to attain near-theoretical density and boosted mechanical buildings, though this raises manufacturing price.
2.2 Surface Finishing and Safety Qualification
After sintering, alumina recipes might go through grinding or polishing to accomplish smooth edges and regular dimensions, particularly for precision-fit covers or modular kitchenware.
Polishing is usually unneeded as a result of the integral thickness and chemical inertness of the material, but some products feature attractive or useful coverings to improve appearances or non-stick efficiency.
These finishes should be compatible with high-temperature usage and devoid of lead, cadmium, or other poisonous components regulated by food safety standards such as FDA 21 CFR, EU Regulation (EC) No 1935/2004, and LFGB.
Rigorous quality control consists of screening for thermal shock resistance (e.g., satiating from 250 ° C to 20 ° C water), mechanical stamina, leachability, and dimensional security.
Microstructural evaluation via scanning electron microscopy (SEM) validates grain size harmony and absence of essential flaws, while X-ray diffraction (XRD) confirms stage pureness and lack of unwanted crystalline stages.
Batch traceability and compliance documents make sure consumer safety and security and regulatory adherence in international markets.
3. Functional Advantages in Culinary Applications
3.1 Chemical Inertness and Food Safety And Security
Alumina ceramic is chemically inert under typical cooking problems, suggesting it does not respond with acidic (e.g., tomatoes, citrus), alkaline, or salty foods, protecting taste honesty and stopping metal ion seeping.
This inertness exceeds that of steel kitchenware, which can wear away or catalyze undesirable reactions, and some polished porcelains, where acidic foods may seep hefty metals from the polish.
The non-porous surface area avoids absorption of oils, spices, or pigments, removing flavor transfer between recipes and decreasing microbial retention.
As a result, alumina cooking meals are excellent for preparing delicate meals such as custards, seafood, and delicate sauces where contamination should be stayed clear of.
Their biocompatibility and resistance to microbial bond also make them suitable for medical and lab applications, underscoring their safety and security account.
3.2 Power Performance and Food Preparation Performance
Because of its high thermal conductivity and warm capability, alumina ceramic heats up more consistently and maintains heat longer than standard bakeware.
This thermal inertia enables regular cooking even after oven door opening and allows residual cooking after removal from warmth, minimizing power usage.
Foods such as casseroles, gratins, and baked vegetables take advantage of the convected heat environment, achieving crisp outsides and moist interiors.
In addition, the product’s ability to run securely in microwave, traditional stove, griddle, and freezer environments uses unmatched convenience in contemporary kitchens.
Unlike metal pans, alumina does not show microwaves or cause arcing, making it microwave-safe without restriction.
The mix of sturdiness, multi-environment compatibility, and cooking accuracy settings alumina ceramic as a premium option for expert and home cooks alike.
4. Sustainability and Future Advancement
4.1 Environmental Effect and Lifecycle Evaluation
Alumina ceramic baking recipes provide significant environmental advantages over non reusable or short-term choices.
With a lifespan exceeding years under correct treatment, they reduce the demand for constant substitute and reduce waste generation.
The raw product– alumina– is derived from bauxite, a plentiful mineral, and the manufacturing procedure, while energy-intensive, gain from recyclability of scrap and off-spec parts in succeeding batches.
End-of-life products are inert and non-toxic, presenting no leaching threat in land fills, though industrial reusing into refractory materials or construction aggregates is progressively exercised.
Their resilience supports circular economy designs, where lengthy product life and reusability are focused on over single-use disposables.
4.2 Technology in Design and Smart Assimilation
Future developments include the combination of practical coverings such as self-cleaning photocatalytic TiO ₂ layers or non-stick SiC-doped surface areas to enhance usability.
Crossbreed ceramic-metal compounds are being checked out to combine the thermal responsiveness of metal with the inertness of alumina.
Additive manufacturing methods might enable customized, topology-optimized bakeware with internal heat-channeling frameworks for sophisticated thermal administration.
Smart porcelains with ingrained temperature sensors or RFID tags for tracking use and maintenance are on the horizon, combining product scientific research with digital kitchen area environments.
In summary, alumina ceramic baking meals represent a merging of sophisticated materials design and useful culinary scientific research.
Their premium thermal, mechanical, and chemical buildings make them not just resilient kitchen tools however additionally sustainable, secure, and high-performance options for modern-day food preparation.
