1. Architectural Characteristics and Synthesis of Round Silica

1.1 Morphological Definition and Crystallinity

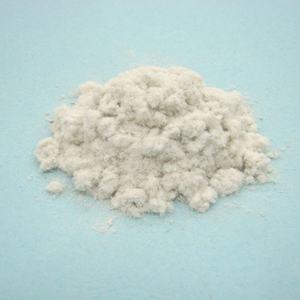

(Spherical Silica)

Spherical silica describes silicon dioxide (SiO ₂) particles engineered with a very uniform, near-perfect spherical shape, distinguishing them from conventional irregular or angular silica powders originated from all-natural resources.

These particles can be amorphous or crystalline, though the amorphous form controls industrial applications because of its superior chemical security, reduced sintering temperature level, and lack of phase shifts that might generate microcracking.

The spherical morphology is not normally prevalent; it must be synthetically attained via regulated procedures that govern nucleation, growth, and surface area power reduction.

Unlike crushed quartz or merged silica, which exhibit jagged edges and broad size distributions, round silica features smooth surface areas, high packaging thickness, and isotropic actions under mechanical tension, making it optimal for accuracy applications.

The particle diameter usually varies from tens of nanometers to numerous micrometers, with limited control over dimension circulation making it possible for predictable efficiency in composite systems.

1.2 Controlled Synthesis Pathways

The main approach for generating spherical silica is the Stöber procedure, a sol-gel method developed in the 1960s that entails the hydrolysis and condensation of silicon alkoxides– most typically tetraethyl orthosilicate (TEOS)– in an alcoholic remedy with ammonia as a stimulant.

By readjusting criteria such as reactant focus, water-to-alkoxide ratio, pH, temperature, and reaction time, scientists can exactly tune fragment dimension, monodispersity, and surface area chemistry.

This approach returns highly consistent, non-agglomerated spheres with excellent batch-to-batch reproducibility, essential for sophisticated manufacturing.

Different methods consist of flame spheroidization, where irregular silica fragments are melted and reshaped right into spheres using high-temperature plasma or fire therapy, and emulsion-based methods that allow encapsulation or core-shell structuring.

For large-scale industrial production, salt silicate-based precipitation courses are also utilized, providing affordable scalability while keeping acceptable sphericity and purity.

Surface area functionalization during or after synthesis– such as grafting with silanes– can present natural groups (e.g., amino, epoxy, or vinyl) to boost compatibility with polymer matrices or allow bioconjugation.

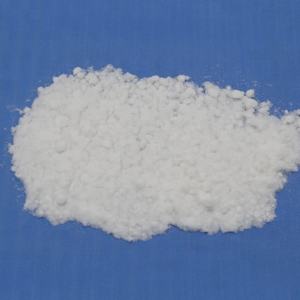

( Spherical Silica)

2. Functional Properties and Performance Advantages

2.1 Flowability, Packing Density, and Rheological Actions

Among one of the most considerable advantages of spherical silica is its remarkable flowability contrasted to angular counterparts, a residential property important in powder handling, injection molding, and additive production.

The lack of sharp sides reduces interparticle friction, enabling dense, uniform loading with very little void area, which enhances the mechanical honesty and thermal conductivity of final compounds.

In digital packaging, high packaging density straight translates to reduce resin content in encapsulants, enhancing thermal stability and reducing coefficient of thermal development (CTE).

Moreover, round particles convey positive rheological residential or commercial properties to suspensions and pastes, minimizing viscosity and avoiding shear enlarging, which makes certain smooth dispensing and consistent coating in semiconductor fabrication.

This regulated circulation behavior is indispensable in applications such as flip-chip underfill, where specific product positioning and void-free filling are needed.

2.2 Mechanical and Thermal Stability

Spherical silica shows excellent mechanical stamina and flexible modulus, adding to the reinforcement of polymer matrices without generating stress and anxiety focus at sharp edges.

When incorporated into epoxy resins or silicones, it boosts firmness, put on resistance, and dimensional security under thermal biking.

Its reduced thermal development coefficient (~ 0.5 × 10 ⁻⁶/ K) very closely matches that of silicon wafers and published circuit boards, minimizing thermal mismatch stresses in microelectronic devices.

In addition, round silica maintains architectural integrity at elevated temperatures (as much as ~ 1000 ° C in inert environments), making it ideal for high-reliability applications in aerospace and vehicle electronics.

The combination of thermal security and electric insulation further improves its energy in power modules and LED packaging.

3. Applications in Electronic Devices and Semiconductor Industry

3.1 Role in Digital Product Packaging and Encapsulation

Spherical silica is a cornerstone product in the semiconductor industry, primarily made use of as a filler in epoxy molding compounds (EMCs) for chip encapsulation.

Changing typical irregular fillers with round ones has actually changed product packaging modern technology by making it possible for higher filler loading (> 80 wt%), boosted mold circulation, and decreased wire move throughout transfer molding.

This innovation sustains the miniaturization of incorporated circuits and the development of innovative plans such as system-in-package (SiP) and fan-out wafer-level product packaging (FOWLP).

The smooth surface area of spherical particles additionally minimizes abrasion of fine gold or copper bonding wires, enhancing tool dependability and return.

Moreover, their isotropic nature guarantees uniform anxiety distribution, reducing the threat of delamination and splitting during thermal biking.

3.2 Use in Polishing and Planarization Processes

In chemical mechanical planarization (CMP), spherical silica nanoparticles work as unpleasant agents in slurries designed to polish silicon wafers, optical lenses, and magnetic storage media.

Their uniform size and shape guarantee regular material removal prices and marginal surface defects such as scrapes or pits.

Surface-modified round silica can be customized for details pH atmospheres and reactivity, enhancing selectivity between different products on a wafer surface.

This accuracy enables the construction of multilayered semiconductor frameworks with nanometer-scale monotony, a requirement for sophisticated lithography and gadget assimilation.

4. Emerging and Cross-Disciplinary Applications

4.1 Biomedical and Diagnostic Makes Use Of

Beyond electronics, round silica nanoparticles are significantly utilized in biomedicine due to their biocompatibility, simplicity of functionalization, and tunable porosity.

They act as drug shipment service providers, where healing agents are packed into mesoporous frameworks and released in action to stimulations such as pH or enzymes.

In diagnostics, fluorescently labeled silica rounds function as stable, safe probes for imaging and biosensing, outshining quantum dots in particular biological settings.

Their surface area can be conjugated with antibodies, peptides, or DNA for targeted discovery of virus or cancer biomarkers.

4.2 Additive Manufacturing and Compound Materials

In 3D printing, especially in binder jetting and stereolithography, round silica powders improve powder bed thickness and layer harmony, bring about greater resolution and mechanical stamina in printed ceramics.

As a strengthening phase in steel matrix and polymer matrix composites, it boosts stiffness, thermal administration, and use resistance without jeopardizing processability.

Study is additionally checking out crossbreed bits– core-shell frameworks with silica shells over magnetic or plasmonic cores– for multifunctional products in sensing and power storage space.

Finally, round silica exhibits just how morphological control at the micro- and nanoscale can change an usual material into a high-performance enabler across diverse technologies.

From securing silicon chips to advancing medical diagnostics, its one-of-a-kind combination of physical, chemical, and rheological properties remains to drive technology in science and engineering.
