1. Basics of Foam Generation and the Role in Lightweight Concrete Systems

1.1 Principles of Air Entrainment and Mobile Structure Formation

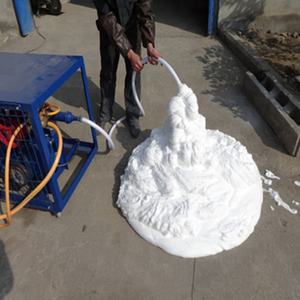

(Lightweight Concrete Foam Generators)

Lightweight concrete, a course of building and construction materials identified by decreased thickness and enhanced thermal insulation, relies basically on the controlled intro of air or gas voids within a cementitious matrix– a process called frothing.

The creation of these consistently distributed, secure air cells is achieved with the use of a specialized device known as a foam generator, which creates penalty, microscale bubbles that are subsequently mixed into the concrete slurry.

These bubbles, generally varying from 50 to 500 micrometers in diameter, come to be completely entrained upon concrete hydration, leading to a mobile concrete framework with significantly reduced device weight– frequently between 300 kg/m six and 1,800 kg/m FIVE– compared to conventional concrete (~ 2,400 kg/m THREE).

The foam generator is not merely a supporting device however a crucial engineering element that figures out the top quality, consistency, and efficiency of the last light-weight concrete product.

The process begins with a fluid foaming representative, normally a protein-based or synthetic surfactant service, which is introduced into the generator where it is mechanically or pneumatically dispersed into a dense foam with high shear or compressed air shot.

The stability and bubble dimension distribution of the produced foam straight influence crucial product homes such as compressive toughness, thermal conductivity, and workability.

1.2 Category and Operational Mechanisms of Foam Generators

Foam generators are extensively categorized into three main kinds based on their functional principles: low-pressure (or wet-film), high-pressure (or dynamic), and rotary (or centrifugal) systems.

Low-pressure generators use a permeable tool– such as a fine mesh, fabric, or ceramic plate– where pressed air is forced, producing bubbles as the frothing service moves over the surface area.

This technique creates reasonably large, less uniform bubbles and is typically made use of for lower-grade applications where exact control is much less essential.

High-pressure systems, in contrast, utilize a nozzle-based design where a high-velocity stream of pressed air shears the foaming liquid into a penalty, uniform foam with narrow bubble dimension distribution.

These systems supply remarkable control over foam density and security, making them optimal for structural-grade light-weight concrete and precast applications.

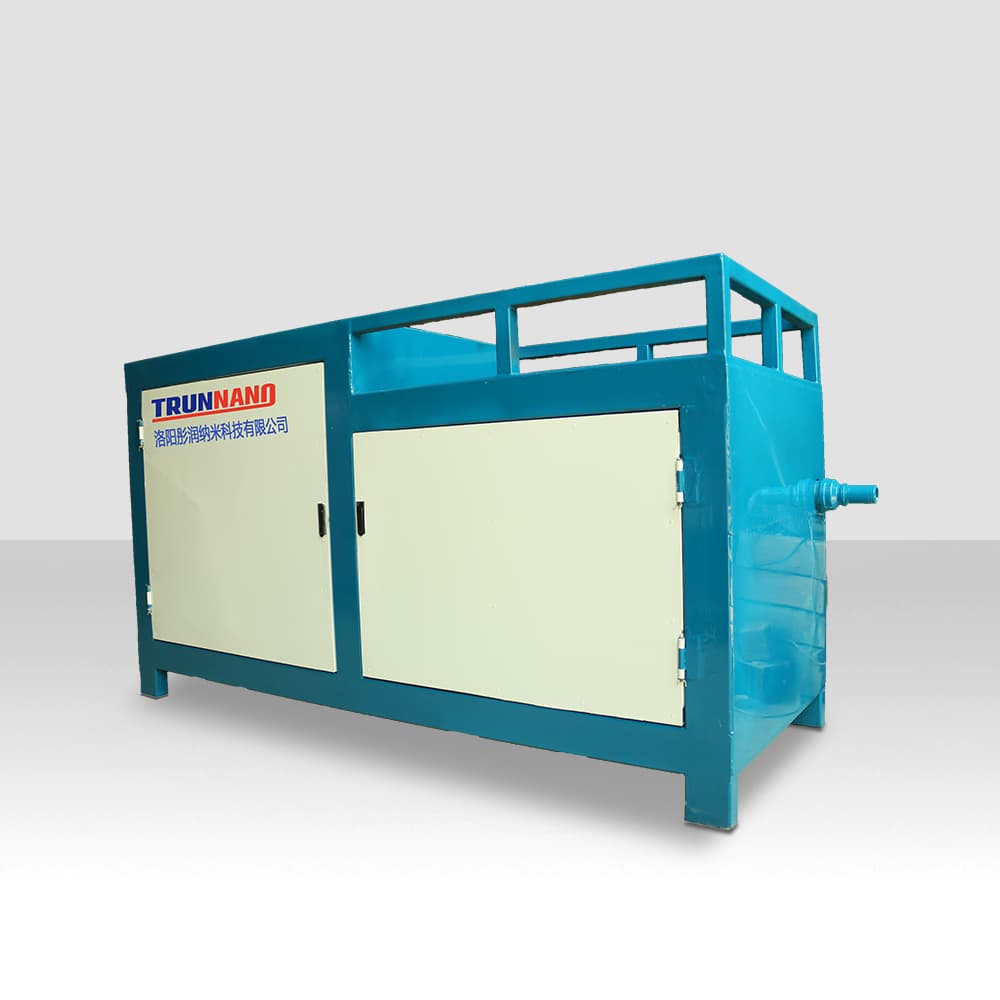

( Lightweight Concrete Foam Generators)

Rotating foam generators utilize a spinning disk or drum that flings the frothing option right into a stream of air, developing bubbles via mechanical diffusion.

While much less precise than high-pressure systems, rotating generators are valued for their effectiveness, ease of upkeep, and continuous result, appropriate for massive on-site pouring procedures.

The choice of foam generator type depends on project-specific demands, including desired concrete density, manufacturing volume, and efficiency specifications.

2. Material Scientific Research Behind Foam Stability and Concrete Efficiency

2.1 Foaming Brokers and Interfacial Chemistry

The efficiency of a foam generator is intrinsically connected to the chemical structure and physical actions of the lathering agent.

Frothing representatives are surfactants that reduce the surface tension of water, allowing the formation of secure air-liquid user interfaces.

Protein-based agents, originated from hydrolyzed keratin or albumin, create resilient, elastic foam films with outstanding stability and are commonly chosen in structural applications.

Synthetic agents, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and lower cost yet may generate much less stable bubbles under extended mixing or negative environmental conditions.

The molecular framework of the surfactant establishes the density and mechanical toughness of the lamellae (slim fluid movies) bordering each bubble, which must withstand coalescence and water drainage during mixing and curing.

Additives such as viscosity modifiers, stabilizers, and pH barriers are typically integrated into foaming services to improve foam persistence and compatibility with concrete chemistry.

2.2 Impact of Foam Characteristics on Concrete Quality

The physical attributes of the created foam– bubble dimension, dimension distribution, air content, and foam thickness– straight dictate the macroscopic habits of lightweight concrete.

Smaller, consistently distributed bubbles boost mechanical strength by minimizing stress and anxiety concentration points and creating a more uniform microstructure.

Conversely, bigger or irregular bubbles can act as flaws, reducing compressive stamina and enhancing leaks in the structure.

Foam stability is just as essential; premature collapse or coalescence throughout blending bring about non-uniform density, segregation, and decreased insulation efficiency.

The air-void system likewise impacts thermal conductivity, with finer, closed-cell frameworks offering remarkable insulation due to trapped air’s low thermal diffusivity.

In addition, the water content of the foam influences the water-cement ratio of the last mix, necessitating specific calibration to prevent compromising the concrete matrix or delaying hydration.

Advanced foam generators now integrate real-time tracking and comments systems to preserve regular foam outcome, making certain reproducibility throughout batches.

3. Combination in Modern Building and Industrial Applications

3.1 Structural and Non-Structural Uses Foamed Concrete

Light-weight concrete generated by means of foam generators is used across a broad range of construction applications, varying from insulation panels and void loading to bearing walls and sidewalk systems.

In structure envelopes, frothed concrete provides superb thermal and acoustic insulation, contributing to energy-efficient designs and lowered heating and cooling lots.

Its low thickness likewise reduces structural dead load, permitting smaller sized foundations and longer periods in high-rise and bridge building and construction.

In civil design, it is made use of for trench backfilling, tunneling, and incline stablizing, where its self-leveling and low-stress characteristics prevent ground disruption and boost security.

Precast manufacturers make use of high-precision foam generators to produce light-weight blocks, panels, and building elements with tight dimensional resistances and constant quality.

Furthermore, foamed concrete shows integral fire resistance as a result of its reduced thermal conductivity and absence of natural parts, making it appropriate for fire-rated assemblies and passive fire protection systems.

3.2 Automation, Scalability, and On-Site Manufacturing Solutions

Modern building and construction needs quick, scalable, and dependable production of light-weight concrete, driving the integration of foam generators right into computerized batching and pumping systems.

Completely automated plants can synchronize foam generation with cement mixing, water application, and additive shot, making it possible for continuous production with minimal human intervention.

Mobile foam generator systems are increasingly released on construction websites, permitting on-demand manufacture of foamed concrete directly at the point of usage, decreasing transport prices and material waste.

These systems are usually equipped with digital controls, remote monitoring, and data logging capacities to ensure compliance with design requirements and high quality criteria.

The scalability of foam generation modern technology– from tiny mobile systems to industrial-scale systems– supports its fostering in both created and emerging markets, promoting lasting structure methods worldwide.

4. Technical Developments and Future Directions in Foam Generation

4.1 Smart Foam Generators and Real-Time Refine Control

Emerging technologies in foam generator style concentrate on improving accuracy, performance, and versatility via digitalization and sensor combination.

Smart foam generators outfitted with stress sensing units, circulation meters, and optical bubble analyzers can dynamically change air-to-liquid proportions and monitor foam high quality in real time.

Artificial intelligence formulas are being checked out to forecast foam actions based on environmental problems, raw material variants, and historic efficiency information.

Such innovations intend to minimize batch-to-batch irregularity and enhance product performance, specifically in high-stakes applications like nuclear protecting or overseas building.

4.2 Sustainability, Environmental Impact, and Eco-friendly Material Assimilation

As the construction industry moves toward decarbonization, foam generators contribute in decreasing the ecological impact of concrete.

By decreasing product thickness, much less cement is needed per unit quantity, directly minimizing CO two discharges related to concrete manufacturing.

Furthermore, lathered concrete can integrate auxiliary cementitious products (SCMs) such as fly ash, slag, or silica fume, boosting sustainability without endangering efficiency.

Research is also underway to establish bio-based frothing agents originated from eco-friendly sources, reducing reliance on petrochemical surfactants.

Future advancements might consist of energy-efficient foam generation approaches, combination with carbon capture technologies, and recyclable concrete formulas enabled by stable mobile structures.

In conclusion, the lightweight concrete foam generator is much more than a mechanical gadget– it is an essential enabler of advanced material engineering in modern construction.

By specifically regulating the style of air gaps at the microscale, it transforms standard concrete into a multifunctional, lasting, and high-performance product.

As innovation progresses, foam generators will continue to drive development in structure science, facilities resilience, and environmental stewardship.
