1. Fundamental Chemistry and Crystallographic Design of Boron Carbide
1.1 Molecular Composition and Structural Intricacy

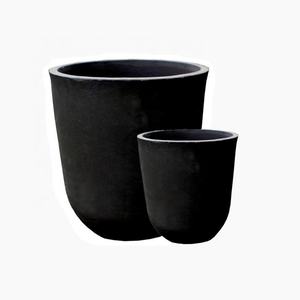

(Boron Carbide Ceramic)
Boron carbide (B FOUR C) stands as one of one of the most intriguing and technically essential ceramic materials due to its one-of-a-kind combination of extreme firmness, reduced thickness, and remarkable neutron absorption ability.
Chemically, it is a non-stoichiometric compound primarily composed of boron and carbon atoms, with an idyllic formula of B FOUR C, though its real make-up can range from B FOUR C to B ₁₀. ₅ C, reflecting a wide homogeneity range controlled by the replacement mechanisms within its complex crystal latticework.
The crystal structure of boron carbide comes from the rhombohedral system (space group R3̄m), identified by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– connected by straight C-B-C or C-C chains along the trigonal axis.
These icosahedra, each including 11 boron atoms and 1 carbon atom (B ₁₁ C), are covalently adhered through incredibly solid B– B, B– C, and C– C bonds, contributing to its amazing mechanical rigidness and thermal security.
The existence of these polyhedral systems and interstitial chains presents structural anisotropy and inherent issues, which affect both the mechanical habits and digital properties of the product.
Unlike less complex porcelains such as alumina or silicon carbide, boron carbide’s atomic style enables considerable configurational flexibility, enabling flaw development and charge circulation that influence its performance under anxiety and irradiation.
1.2 Physical and Digital Characteristics Occurring from Atomic Bonding
The covalent bonding network in boron carbide causes among the highest well-known solidity worths among artificial products– second just to ruby and cubic boron nitride– commonly ranging from 30 to 38 GPa on the Vickers hardness range.
Its thickness is remarkably reduced (~ 2.52 g/cm THREE), making it approximately 30% lighter than alumina and nearly 70% lighter than steel, an important advantage in weight-sensitive applications such as personal shield and aerospace parts.
Boron carbide displays excellent chemical inertness, standing up to assault by many acids and antacids at room temperature level, although it can oxidize above 450 ° C in air, developing boric oxide (B TWO O THREE) and co2, which might endanger structural stability in high-temperature oxidative atmospheres.
It possesses a wide bandgap (~ 2.1 eV), categorizing it as a semiconductor with potential applications in high-temperature electronics and radiation detectors.
Additionally, its high Seebeck coefficient and low thermal conductivity make it a prospect for thermoelectric energy conversion, particularly in severe environments where standard products fall short.
(Boron Carbide Ceramic)
The material also demonstrates outstanding neutron absorption because of the high neutron capture cross-section of the ¹⁰ B isotope (roughly 3837 barns for thermal neutrons), rendering it indispensable in nuclear reactor control poles, protecting, and invested gas storage systems.
2. Synthesis, Handling, and Challenges in Densification
2.1 Industrial Manufacturing and Powder Construction Methods
Boron carbide is largely produced via high-temperature carbothermal decrease of boric acid (H TWO BO FIVE) or boron oxide (B ₂ O FOUR) with carbon sources such as petroleum coke or charcoal in electric arc heating systems running above 2000 ° C.
The response proceeds as: 2B ₂ O ₃ + 7C → B FOUR C + 6CO, generating rugged, angular powders that call for comprehensive milling to accomplish submicron particle dimensions appropriate for ceramic handling.
Alternative synthesis paths include self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted approaches, which use better control over stoichiometry and bit morphology yet are much less scalable for industrial use.
Due to its severe solidity, grinding boron carbide into great powders is energy-intensive and susceptible to contamination from crushing media, requiring using boron carbide-lined mills or polymeric grinding help to maintain pureness.
The resulting powders need to be thoroughly categorized and deagglomerated to make sure consistent packaging and reliable sintering.
2.2 Sintering Limitations and Advanced Combination Techniques
A major difficulty in boron carbide ceramic fabrication is its covalent bonding nature and reduced self-diffusion coefficient, which severely restrict densification during traditional pressureless sintering.
Even at temperatures coming close to 2200 ° C, pressureless sintering usually generates porcelains with 80– 90% of academic density, leaving recurring porosity that degrades mechanical strength and ballistic efficiency.
To overcome this, advanced densification strategies such as hot pushing (HP) and warm isostatic pushing (HIP) are used.
Warm pressing uses uniaxial pressure (generally 30– 50 MPa) at temperatures in between 2100 ° C and 2300 ° C, advertising bit rearrangement and plastic deformation, making it possible for densities surpassing 95%.
HIP additionally boosts densification by using isostatic gas stress (100– 200 MPa) after encapsulation, getting rid of closed pores and accomplishing near-full thickness with enhanced fracture toughness.
Additives such as carbon, silicon, or shift metal borides (e.g., TiB ₂, CrB ₂) are occasionally introduced in tiny amounts to boost sinterability and hinder grain development, though they may somewhat minimize solidity or neutron absorption performance.
Regardless of these breakthroughs, grain limit weakness and inherent brittleness continue to be relentless challenges, specifically under vibrant filling conditions.
3. Mechanical Behavior and Performance Under Extreme Loading Conditions
3.1 Ballistic Resistance and Failure Systems
Boron carbide is extensively acknowledged as a premier product for light-weight ballistic defense in body armor, automobile plating, and airplane protecting.
Its high hardness enables it to efficiently deteriorate and deform inbound projectiles such as armor-piercing bullets and pieces, dissipating kinetic energy with devices consisting of fracture, microcracking, and localized stage change.
Nevertheless, boron carbide shows a phenomenon called “amorphization under shock,” where, under high-velocity effect (normally > 1.8 km/s), the crystalline structure falls down right into a disordered, amorphous stage that does not have load-bearing capability, leading to catastrophic failure.
This pressure-induced amorphization, observed through in-situ X-ray diffraction and TEM studies, is credited to the malfunction of icosahedral systems and C-B-C chains under severe shear stress and anxiety.
Initiatives to alleviate this include grain improvement, composite design (e.g., B ₄ C-SiC), and surface finish with ductile metals to postpone crack propagation and include fragmentation.
3.2 Use Resistance and Industrial Applications
Past protection, boron carbide’s abrasion resistance makes it optimal for commercial applications entailing serious wear, such as sandblasting nozzles, water jet cutting pointers, and grinding media.
Its solidity substantially exceeds that of tungsten carbide and alumina, leading to extensive service life and lowered upkeep costs in high-throughput production atmospheres.
Components made from boron carbide can run under high-pressure unpleasant flows without fast deterioration, although care must be required to stay clear of thermal shock and tensile tensions throughout procedure.
Its use in nuclear atmospheres also includes wear-resistant elements in fuel handling systems, where mechanical resilience and neutron absorption are both called for.
4. Strategic Applications in Nuclear, Aerospace, and Arising Technologies
4.1 Neutron Absorption and Radiation Shielding Solutions
Among the most important non-military applications of boron carbide is in nuclear energy, where it serves as a neutron-absorbing product in control rods, shutdown pellets, and radiation securing structures.
Because of the high abundance of the ¹⁰ B isotope (normally ~ 20%, however can be enhanced to > 90%), boron carbide effectively catches thermal neutrons via the ¹⁰ B(n, α)seven Li response, generating alpha fragments and lithium ions that are easily had within the product.
This reaction is non-radioactive and produces marginal long-lived by-products, making boron carbide more secure and much more stable than choices like cadmium or hafnium.
It is made use of in pressurized water reactors (PWRs), boiling water reactors (BWRs), and study activators, commonly in the type of sintered pellets, clothed tubes, or composite panels.
Its stability under neutron irradiation and ability to retain fission products enhance reactor safety and security and functional long life.
4.2 Aerospace, Thermoelectrics, and Future Material Frontiers
In aerospace, boron carbide is being explored for use in hypersonic automobile leading sides, where its high melting point (~ 2450 ° C), reduced thickness, and thermal shock resistance deal benefits over metallic alloys.
Its capacity in thermoelectric gadgets comes from its high Seebeck coefficient and reduced thermal conductivity, making it possible for direct conversion of waste warmth right into electricity in severe settings such as deep-space probes or nuclear-powered systems.
Study is likewise underway to establish boron carbide-based composites with carbon nanotubes or graphene to enhance sturdiness and electrical conductivity for multifunctional structural electronic devices.
Additionally, its semiconductor residential or commercial properties are being leveraged in radiation-hardened sensors and detectors for area and nuclear applications.
In recap, boron carbide ceramics stand for a keystone product at the intersection of severe mechanical efficiency, nuclear design, and advanced production.
Its distinct mix of ultra-high solidity, low density, and neutron absorption capacity makes it irreplaceable in defense and nuclear technologies, while recurring research remains to expand its energy right into aerospace, energy conversion, and next-generation compounds.
As refining strategies improve and new composite styles arise, boron carbide will certainly stay at the leading edge of materials development for the most requiring technological obstacles.
