1. Product Fundamentals and Architectural Properties
1.1 Crystal Chemistry and Polymorphism

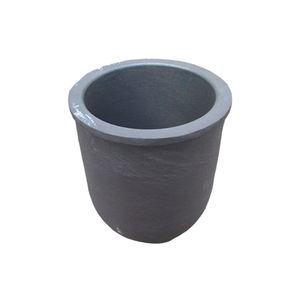

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms set up in a tetrahedral latticework, developing one of the most thermally and chemically durable products known.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.
The solid Si– C bonds, with bond energy exceeding 300 kJ/mol, confer phenomenal solidity, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is favored as a result of its capability to maintain structural stability under extreme thermal gradients and destructive liquified environments.
Unlike oxide porcelains, SiC does not undertake disruptive phase shifts up to its sublimation factor (~ 2700 ° C), making it optimal for continual procedure over 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A defining quality of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises uniform heat distribution and lessens thermal stress throughout fast home heating or cooling.
This residential property contrasts sharply with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are prone to cracking under thermal shock.
SiC likewise exhibits excellent mechanical stamina at raised temperature levels, keeping over 80% of its room-temperature flexural stamina (approximately 400 MPa) even at 1400 ° C.
Its low coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) even more boosts resistance to thermal shock, a crucial consider duplicated biking between ambient and operational temperatures.
In addition, SiC demonstrates superior wear and abrasion resistance, making certain long life span in settings entailing mechanical handling or stormy thaw circulation.
2. Production Techniques and Microstructural Control

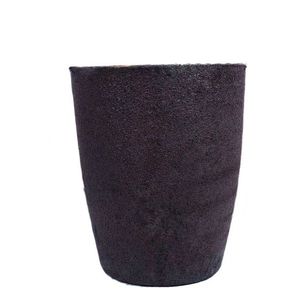

( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Approaches
Commercial SiC crucibles are mainly fabricated with pressureless sintering, response bonding, or warm pushing, each offering distinct advantages in expense, purity, and performance.
Pressureless sintering includes compacting great SiC powder with sintering aids such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to achieve near-theoretical thickness.
This technique returns high-purity, high-strength crucibles appropriate for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is generated by penetrating a porous carbon preform with liquified silicon, which reacts to create β-SiC in situ, resulting in a composite of SiC and recurring silicon.
While a little reduced in thermal conductivity because of metallic silicon additions, RBSC supplies superb dimensional security and lower manufacturing price, making it preferred for large-scale industrial use.
Hot-pressed SiC, though much more expensive, offers the highest possible density and purity, reserved for ultra-demanding applications such as single-crystal growth.
2.2 Surface Top Quality and Geometric Accuracy
Post-sintering machining, including grinding and splashing, guarantees precise dimensional tolerances and smooth interior surfaces that reduce nucleation sites and decrease contamination danger.
Surface area roughness is thoroughly regulated to stop thaw bond and facilitate simple release of solidified materials.
Crucible geometry– such as wall density, taper angle, and lower curvature– is enhanced to stabilize thermal mass, architectural toughness, and compatibility with furnace heating elements.
Personalized layouts fit certain thaw volumes, heating accounts, and material sensitivity, ensuring optimal efficiency across varied commercial procedures.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, verifies microstructural homogeneity and lack of problems like pores or cracks.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Aggressive Atmospheres
SiC crucibles display outstanding resistance to chemical attack by molten steels, slags, and non-oxidizing salts, exceeding traditional graphite and oxide porcelains.
They are stable touching molten aluminum, copper, silver, and their alloys, standing up to wetting and dissolution as a result of low interfacial power and development of protective surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles avoid metallic contamination that can weaken electronic residential properties.
Nonetheless, under extremely oxidizing conditions or in the visibility of alkaline changes, SiC can oxidize to develop silica (SiO ₂), which may respond additionally to develop low-melting-point silicates.
Therefore, SiC is finest fit for neutral or decreasing ambiences, where its stability is made the most of.
3.2 Limitations and Compatibility Considerations
In spite of its effectiveness, SiC is not generally inert; it reacts with specific liquified materials, especially iron-group metals (Fe, Ni, Carbon monoxide) at high temperatures through carburization and dissolution procedures.
In molten steel processing, SiC crucibles weaken rapidly and are consequently prevented.
In a similar way, antacids and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, launching carbon and forming silicides, limiting their use in battery material synthesis or responsive metal spreading.
For molten glass and ceramics, SiC is usually suitable yet may introduce trace silicon right into extremely sensitive optical or electronic glasses.
Understanding these material-specific communications is important for picking the ideal crucible kind and guaranteeing procedure purity and crucible longevity.
4. Industrial Applications and Technological Evolution
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are vital in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they hold up against long term direct exposure to molten silicon at ~ 1420 ° C.
Their thermal stability makes certain consistent condensation and minimizes misplacement density, straight affecting solar efficiency.
In foundries, SiC crucibles are made use of for melting non-ferrous steels such as light weight aluminum and brass, using longer service life and reduced dross formation contrasted to clay-graphite options.
They are likewise employed in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of sophisticated ceramics and intermetallic compounds.
4.2 Future Patterns and Advanced Material Combination
Arising applications include making use of SiC crucibles in next-generation nuclear products testing and molten salt activators, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FOUR) are being applied to SiC surfaces to better improve chemical inertness and stop silicon diffusion in ultra-high-purity processes.
Additive manufacturing of SiC elements making use of binder jetting or stereolithography is under growth, promising facility geometries and quick prototyping for specialized crucible designs.
As need expands for energy-efficient, long lasting, and contamination-free high-temperature processing, silicon carbide crucibles will continue to be a foundation innovation in sophisticated materials manufacturing.
To conclude, silicon carbide crucibles stand for a critical enabling component in high-temperature commercial and scientific processes.
Their exceptional mix of thermal stability, mechanical stamina, and chemical resistance makes them the product of option for applications where efficiency and reliability are paramount.
