Bearings are often called the “joints of market.” Obtaining the selection right straight influences your tools’s reliability, life span, and maintenance prices. Several bearing failings do not come from poor quality– they come from incorrect choices. Points like tons computation errors, overlooking speed limitations, or choosing the incorrect lubrication technique. These tiny blunders can create equipment to break down early in its service life. This overview strolls you through the entire choice process, giving designers and purchase experts a clear path from examining working conditions to validating the appropriate bearing model.

Component One: What You Need to Know Before Beginning

Prior to you open any kind of bearing directory, ask on your own one inquiry: What exactly does this equipment need the bearing to do? The response lies in 5 key areas:

1. Lots Attributes

Lots is the top consider birthing option. You need to find out three points:

Instructions: Is it radial tons (vertical to the shaft), axial tons (parallel to the shaft), or a combination of both?

Dimension: Is it light, modest, or heavy? Any type of impact lots?

Nature: Is the tons stable or changing? Exactly how frequently do influence loads happen and how strong are they?

Take a belt conveyor as an example. The bearings at the drive end tackle radial loads from belt tension, the weight of the belt and rollers, plus the shaft setting up. When computing, you need to take into consideration various operating problems– startup, typical running, stopping– and use the worst-case scenario for your design.

2. Speed Conditions

(bearings for steel mill)

Rate is an additional vital aspect affecting birthing life. According to tiredness life concept, birthing life has an inverse partnership with rate. For variable speed problems, you require to determine the comparable speed. Take a rotary kiln support roller– its rate might vary from 0.5 to 2.5 r/min. You would certainly require to weight the running time at each speed to obtain an equivalent value.

Something to keep an eye out for: recognizing only the optimum rate can ruin your lubrication technique. The lubricating substance you select based on full throttle may not develop a correct oil movie at lower rates. Additionally, if your maker has long idle durations, you ought to state that– otherwise close-by equipment vibrations can trigger false brinelling damages.

3. Required Life Span

Birthing life span is usually revealed as L10h (the number of hours that 90% of a bearing group will get to before fatigue spalling shows up). A common blunder is opting for an overly long life– once L10h surpasses 100,000 hours, the bearing size gets too big. It becomes more difficult to lube, torque boosts, and it ends up being more sensitive to minimal tons. In the long run, it might stop working for reasons apart from fatigue.

4. Space Constraints

You should know your available room restrictions from the start– shaft size range, housing bore size, axial size limitations. When you recognize the matching shaft size and readily available room, you can swiftly narrow down your alternatives.

5. Running Accuracy Needs

A lot of applications do simply fine with basic precision bearings. However, for high-speed or high-precision equipment like maker device pins, you’ll require P5, P4, or even higher qualities. Just bear in mind that going with greater accuracy without a real need will certainly increase expenses substantially. Match the grade to your real demands.

Part Two: Matching Birthing Types to Working Issues

Once you have those parameters clear, the following action is to match the right bearing type based on lots direction, size, rate, and misalignment resistance.

1. Lots Instructions: Radial, Axial, or Incorporated?

This is one of the most fundamental filter. It can point you to a few candidates immediately:

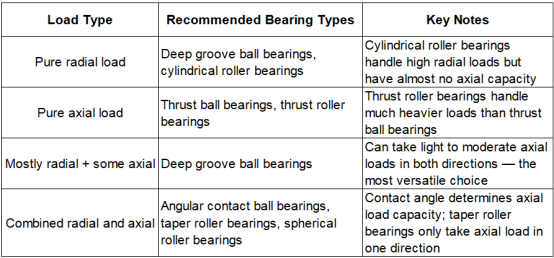

When the axial-to-radial load ratio (Fa/Fr) modifications, your option reasoning adjustments too. At reduced proportions, opt for deep groove ball bearings. At modest proportions, utilize small-contact-angle angular contact bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or consider combining a thrust bearing with a radial bearing.

( Radial)

2. Lots Dimension: Ball Bearings or Roller Bearings?

This is a timeless choice:

Light or moderate loads: Opt for sphere bearings (deep groove or angular call). The factor get in touch with between rounds and raceways gives lower friction, making them appropriate for tool to high speeds.

Hefty or impact lots: You need to use roller bearings (round, spherical, or taper). Line contact between rollers and raceways gives much higher tons capability and better influence resistance.

3. Speed: Sphere Bearings for High Speed, Roller Bearings for Low

Generally talking, ball bearings have greater rate limitations than roller bearings. For high-speed applications (above 1000 r/min), put round bearings on top of your listing. When you require the highest possible speed with pure radial lots, open deep groove sphere bearings are your best choice. For combined loads at high speed, angular call ball bearings are the way to go.

Cylindrical roller bearings, taper roller bearings, and needle bearings have reasonably reduced rate limits. They’re generally matched for low-to-medium rate, heavy-load problems.

4. Imbalance Resistance: Do You Need Self-Aligning?

This one commonly obtains neglected however it’s exceptionally important. You should think about self-aligning bearings when:

Birthing housing bores do not line up well

The shaft isn’t rigid adequate and flexes during procedure

The bearing period is long and thermal development creates angular imbalance

You’re utilizing separate split real estates (like pillow block bearings)

Spherical roller bearings and round sphere bearings have concave external ring raceways. This enables a specific quantity of angular imbalance between the inner and external rings without damaging edge tension. They can make up for both vibrant deflection and fixed installment errors.

On the other hand, round roller bearings, taper roller bearings, and needle bearings have very restricted self-aligning ability. Also a tiny angular imbalance can create anxiety concentration at the roller ends, bring about high edge stress that considerably reduce birthing life. Deep groove sphere bearings do have some self-aligning capacity, yet the allowed angle is small– going beyond it will certainly decrease life as well.

5. Axial Expansion Settlement: Fixed End or Drifting End?

Lengthy shafts broaden and contract with temperature level changes throughout operation. That indicates you need to establish your bearing arrangement with one fixed end and one drifting end.

NU and N collection round roller bearings have no flanges on the inner ring (or on one side). This lets the shaft move easily in the axial direction about the real estate– making them perfect as floating-end bearings. NJ and NUP collection can supply axial positioning in one or both instructions, so they function well as fixed-end bearings. This arrangement is extremely typical in gearboxes and electrical motors.

Part 3: BMB Product Line at a Glimpse

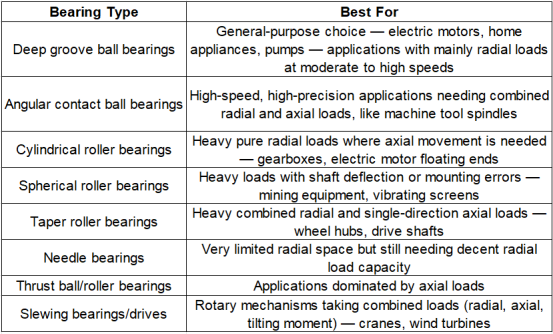

BMB supplies a full series of commercial bearings, covering all the significant types we’ve reviewed. This fast recommendation table attaches the selection concepts over directly to certain item groups:

Component 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals

( Axial)

1. Precision Grades

Standard accuracy (P0) works for the substantial majority of basic machinery. For precision tools like device pins or aerospace components, you’ll need P5 or greater. Tighter precision means tighter dimensional tolerances and better running precision– but also higher prices.

2. Internal Clearance and Preload

Bearings require to preserve proper internal clearance after installation. Excessive clearance leads to resonance and noise. Insufficient, and thermal growth can create the bearing to seize. In grandfather clauses like machine device pins, preload (using negative clearance) is utilized to enhance system rigidness and rotational precision.

3. Lube Choice

Lubrication is a make-or-break aspect for birthing life. Oil works for the majority of moderate-speed and temperature applications– it’s basic to secure and can run maintenance-free for long periods. Oil (oil bathroom, oil mist, jet lubrication) is better for high-speed or high-temperature problems, as it dissipates warmth more effectively. When selecting a lubricating substance, examine the rate element (ndm worth). Do not just select based on optimum rate– the oil you select could not form an appropriate movie at lower rates.

4. Securing Program

Select the seal type based on your setting: contact seals keep dirt out well however add some rubbing; non-contact seals benefit high speeds yet provide less defense against contamination; open bearings count on outside securing systems.

Part 5: Life Calculation– From Theory to Practice

( or Combined Basic Filter Table)

At the end of the day, you require to verify whether your chosen bearing will really fulfill the anticipated life span. This is where basic ranking life computation is available in.

The basic ranking life L10 formula (ISO 281 standard):

For round bearings: L10 = (C/P) FIVE × (10 ⁶/ 60n) hours

For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours

Where:

C: fundamental vibrant tons ranking (kN)– discovered in the item catalog

P: equivalent dynamic lots (kN)– takes both radial and axial loads right into account

The comparable vibrant load P is determined as: P = X · Fr + Y · Fa

Fr is the radial tons, Fa is the axial tons

X and Y are coefficients that rely on birthing kind and the Fa/Fr proportion– inspect the directory for these values

For more demanding problems, you can apply adjustment aspects: Ln = a1 × a2 × a3 × L10

a1 is the integrity factor (a1 = 1 for 90% dependability, about 0.21 for 99%)

a2 is the product aspect (high-grade bearing steel can get to 1.5 to 2)

a3 is the operating problems aspect (excellent lubrication and sanitation can provide 2 to 3)

With this calculation, designers can verify that the chosen bearing satisfies the required life span. It likewise helps compare several options and make data-driven choices.

This overview has actually strolled you with the full choice course– from analyzing working problems, to matching the best bearing kind, to confirming life span. Recognizing and using this method will help you make accurate, effective, and affordable bearing decisions across a variety of commercial applications.
