Intro to Light Weight Aluminum Nitride Ceramics

Aluminum nitride (AlN) is a high-performance ceramic material that has actually gotten prevalent recognition for its extraordinary thermal conductivity, electric insulation, and mechanical security at elevated temperature levels. With a hexagonal wurtzite crystal structure, AlN exhibits a distinct combination of homes that make it one of the most ideal substratum product for applications in electronics, optoelectronics, power components, and high-temperature settings. Its ability to efficiently dissipate heat while preserving outstanding dielectric strength positions AlN as a premium alternative to conventional ceramic substrates such as alumina and beryllium oxide. This post discovers the basic features of aluminum nitride ceramics, looks into construction methods, and highlights its essential duties across sophisticated technological domains.

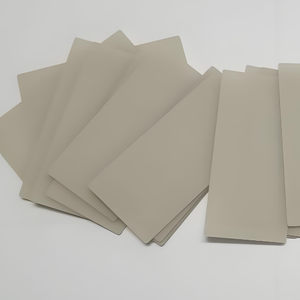

(Aluminum Nitride Ceramics)

Crystal Structure and Essential Characteristic

The efficiency of aluminum nitride as a substratum material is greatly dictated by its crystalline structure and inherent physical residential or commercial properties. AlN embraces a wurtzite-type latticework composed of rotating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– commonly surpassing 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value considerably surpasses those of various other extensively made use of ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).

Along with its thermal efficiency, AlN possesses a vast bandgap of approximately 6.2 eV, causing exceptional electrical insulation properties even at heats. It likewise demonstrates low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an ideal match for semiconductor tool packaging. Moreover, AlN displays high chemical inertness and resistance to thaw steels, enhancing its viability for harsh atmospheres. These consolidated attributes develop AlN as a top candidate for high-power digital substratums and thermally handled systems.

Fabrication and Sintering Technologies

Making high-quality aluminum nitride porcelains requires accurate powder synthesis and sintering strategies to attain thick microstructures with marginal pollutants. As a result of its covalent bonding nature, AlN does not conveniently densify via standard pressureless sintering. As a result, sintering aids such as yttrium oxide (Y ₂ O TWO), calcium oxide (CaO), or unusual earth components are generally contributed to promote liquid-phase sintering and boost grain boundary diffusion.

The manufacture procedure normally starts with the carbothermal decrease of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are after that milled, shaped through techniques like tape casting or injection molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Warm pushing or spark plasma sintering (SPS) can additionally enhance thickness and thermal conductivity by minimizing porosity and promoting grain positioning. Advanced additive production strategies are also being discovered to make complex-shaped AlN components with tailored thermal management abilities.

Application in Digital Packaging and Power Modules

Among the most prominent uses of aluminum nitride porcelains remains in digital packaging, especially for high-power devices such as protected gateway bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities enhance in modern electronic devices, efficient heat dissipation comes to be vital to make certain reliability and long life. AlN substrates offer an optimum solution by integrating high thermal conductivity with excellent electric isolation, stopping short circuits and thermal runaway problems.

Additionally, AlN-based straight adhered copper (DBC) and energetic metal brazed (AMB) substratums are progressively employed in power component layouts for electrical lorries, renewable energy inverters, and commercial motor drives. Compared to standard alumina or silicon nitride substrates, AlN uses much faster heat transfer and far better compatibility with silicon chip coefficients of thermal growth, consequently reducing mechanical anxiety and boosting total system efficiency. Continuous research study intends to boost the bonding strength and metallization techniques on AlN surfaces to further expand its application scope.

Usage in Optoelectronic and High-Temperature Tools

Beyond digital packaging, light weight aluminum nitride ceramics play an important function in optoelectronic and high-temperature applications due to their transparency to ultraviolet (UV) radiation and thermal security. AlN is commonly used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications needing sanitation, picking up, and optical interaction. Its broad bandgap and low absorption coefficient in the UV variety make it a perfect prospect for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.

In addition, AlN’s ability to operate dependably at temperature levels going beyond 1000 ° C makes it ideal for usage in sensing units, thermoelectric generators, and components revealed to extreme thermal lots. In aerospace and defense industries, AlN-based sensor packages are utilized in jet engine monitoring systems and high-temperature control devices where traditional products would certainly stop working. Continuous improvements in thin-film deposition and epitaxial growth strategies are increasing the capacity of AlN in next-generation optoelectronic and high-temperature integrated systems.

( Aluminum Nitride Ceramics)

Environmental Stability and Long-Term Reliability

A vital consideration for any substrate product is its long-lasting integrity under functional tensions. Aluminum nitride demonstrates superior ecological stability compared to lots of other ceramics. It is extremely immune to rust from acids, antacid, and molten metals, making sure toughness in aggressive chemical atmospheres. Nevertheless, AlN is vulnerable to hydrolysis when subjected to moisture at raised temperatures, which can deteriorate its surface area and decrease thermal performance.

To alleviate this problem, protective layers such as silicon nitride (Si three N ₄), aluminum oxide, or polymer-based encapsulation layers are commonly related to enhance wetness resistance. In addition, careful sealing and packaging approaches are implemented throughout gadget assembly to maintain the stability of AlN substratums throughout their service life. As environmental laws become extra rigid, the safe nature of AlN likewise positions it as a favored alternative to beryllium oxide, which presents wellness dangers during handling and disposal.

Conclusion

Aluminum nitride ceramics stand for a course of sophisticated materials uniquely fit to attend to the growing demands for reliable thermal monitoring and electric insulation in high-performance electronic and optoelectronic systems. Their phenomenal thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them one of the most suitable substrate material for a wide range of applications– from automobile power modules to deep UV LEDs and high-temperature sensors. As construction technologies continue to evolve and affordable manufacturing methods grow, the adoption of AlN substratums is anticipated to increase dramatically, driving development in next-generation electronic and photonic devices.
