1. Product Characteristics and Architectural Layout
1.1 Make-up and Crystalline Phases of Alumina

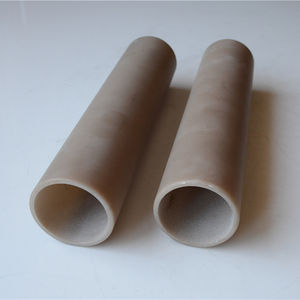

( Alumina Ceramic Tubes)
Alumina (Al ₂ O ₃) ceramic tubes are mostly made from high-purity aluminum oxide, with purity levels generally varying from 90% to 99.8%, relying on the desired application.
The dominant crystalline phase in fully thick, high-temperature sintered tubes is α-alumina (corundum), which exhibits a trigonal crystal structure and extraordinary thermodynamic security.
This phase transition from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina happens over 1100 ° C and leads to a dense, interlacing microstructure that offers superior mechanical strength and chemical resistance.
Higher purity qualities (≥ 99.5%) make the most of hardness, put on resistance, and dielectric performance, while lower-purity formulations may include secondary phases like mullite or glassy grain limit phases to reduce price or tailor thermal expansion.
The capacity to control grain dimension, porosity, and phase structure throughout processing allows engineers to make improvements alumina tubes for specific useful needs across diverse industrial domains.
1.2 Mechanical, Thermal, and Electric Residence
Alumina ceramic tubes show a special mix of physical residential or commercial properties that make them essential sought after design settings.
With a Vickers firmness going beyond 1500 HV, they are highly resistant to abrasion and erosion, outperforming most steels and polymers in wear-prone systems.
Their compressive stamina can reach 2000 MPa, allowing structural usage under high mechanical tons, while flexural toughness normally varies from 300 to 500 MPa, relying on density and surface area coating.
Thermally, alumina keeps stability up to 1700 ° C in oxidizing atmospheres, with a low coefficient of thermal expansion (~ 8 ppm/K), contributing to exceptional thermal shock resistance when effectively designed.
Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to steels or aluminum nitride, it suffices for lots of high-temperature applications where electrical insulation and architectural honesty are prioritized.
Electrically, alumina is an outstanding insulator with quantity resistivity > 10 ¹⁴ Ω · cm and high dielectric stamina (> 15 kV/mm), making it perfect for electric feedthroughs, sensing unit housings, and high-voltage insulation.

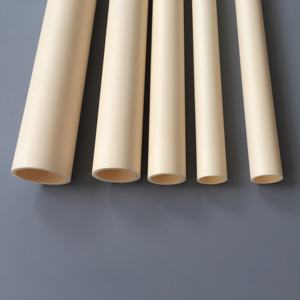

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Shaping and Creating Strategies
The production of alumina ceramic tubes includes sophisticated forming methods customized to achieve precise measurements, wall density harmony, and surface area high quality.
Usual strategies consist of extrusion, isostatic pressing, and slide spreading, each matched to various size arrays and efficiency requirements.
Extrusion is commonly utilized for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is required via a die and cut to size prior to drying and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) uses consistent pressure from all instructions to compact green bodies, decreasing distortion and boosting thickness homogeneity.
Slide casting, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold, is suitable for complex or large-diameter geometries with variable wall surface thickness.
After creating, tubes undertake cautious drying out to stop breaking, adhered to by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional security.
2.2 Ending Up and Quality Assurance
Post-sintering procedures such as centerless grinding, splashing, and polishing are utilized to attain limited tolerances, smooth surface finishes, and accurate inner and outer sizes.
Tolerances as limited as ± 0.01 mm are achievable for critical applications in semiconductor handling or logical instrumentation.
Surface roughness can be minimized to Ra < 0.1 µm, lessening bit trapping and improving compatibility with ultra-high vacuum cleaner (UHV) or cleanroom settings.
Non-destructive screening approaches– including ultrasonic examination, X-ray radiography, and dye penetrant screening– make certain structural honesty and lack of splits or gaps.
Dimensional assessment making use of coordinate gauging equipments (CMM) or laser scanning verifies conformity with design specs, specifically for personalized or high-volume manufacturing runs.
3. Useful Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Degradation
Among the most engaging advantages of alumina ceramic tubes is their capacity to endure extreme thermal and chemical problems where metals and polymers fall short.
They remain dimensionally stable and mechanically durable in continual solution at temperature levels above 1500 ° C, making them ideal for furnace linings, thermocouple defense sheaths, and glowing heater tubes.
Their inertness to thaw metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and several acids (other than hydrofluoric and warm phosphoric acid) makes it possible for usage in metallurgical and chemical handling devices.
In oxidizing and lowering environments, alumina does not deteriorate or catalyze undesirable reactions, maintaining procedure pureness in semiconductor and glass production.
This chemical inertness additionally stops contamination in high-purity fluid taking care of systems, including those made use of in pharmaceutical and food handling markets.
3.2 Electric Insulation and Plasma Resistance
In electrical and plasma environments, alumina tubes act as shielding barriers that keep circuit integrity under high voltage and raised temperature.
They are utilized in high-intensity discharge (HID) lights, where they consist of ionized gases at temperatures surpassing 1000 ° C while holding up against electric possibilities of several kilovolts.
In plasma etching and deposition systems, alumina tubes function as dielectric home windows or gas circulation parts, standing up to ion barrage and thermal cycling without fracturing or outgassing.
Their low dielectric loss and high arc resistance prevent electrical tracking and failure, ensuring long life span in switchgear and power transmission parts.
These homes are critical in preserving process stability and tools integrity in innovative manufacturing and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Handling Solutions
Alumina ceramic tubes are essential to a variety of industrial processes that demand resilience under extreme problems.
In thermal handling, they work as protective sheaths for thermocouples and heating elements in kilns, heaters, and warmth therapy tools, securing delicate elements from harsh ambiences and mechanical wear.
In liquid handling, they deliver aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables rapid home heating and cooling down cycles without failure, a key benefit in cyclic industrial operations.
In glass manufacturing, alumina tubes lead liquified glass circulations and assistance forming devices, standing up to erosion from viscous, high-temperature melts.
4.2 Advanced Technologies and Future Combination
Past typical commercial usages, alumina tubes are discovering brand-new functions in sophisticated innovations.
In semiconductor fabrication, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) activators and ion implantation systems, where particle generation and metallic contamination must be lessened.
In medical gadgets, biocompatible alumina tubes act as protecting elements in surgical devices, oral implants, and analysis sensing units.
Study is exploring functionalized alumina tubes with ingrained sensing units or conductive traces for smart architectural monitoring in aerospace and power systems.
Additive manufacturing (3D printing) of alumina is becoming a technique to generate complex tube geometries with internal networks or graded structures, making it possible for next-generation heat exchangers and microreactors.
As sectors press towards greater efficiency, cleaner processes, and greater dependability, alumina ceramic tubes continue to evolve as enabling elements in the facilities of modern-day innovation.
In recap, alumina ceramic tubes stand for a fully grown yet dynamically advancing course of crafted products, incorporating phenomenal thermal, mechanical, and electrical performance in a solitary not natural conduit.
Their convenience across extreme atmospheres ensures their continued relevance in both developed industrial systems and arising state-of-the-art applications.
