1. The Scientific research and Framework of Alumina Porcelain Products
1.1 Crystallography and Compositional Versions of Aluminum Oxide

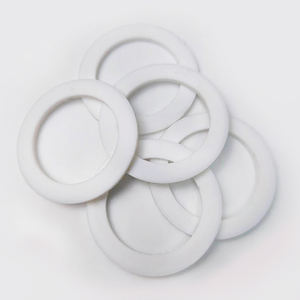

(Alumina Ceramics Rings)
Alumina ceramic rings are made from aluminum oxide (Al two O THREE), a compound renowned for its outstanding balance of mechanical stamina, thermal security, and electrical insulation.
One of the most thermodynamically steady and industrially appropriate stage of alumina is the alpha (α) phase, which takes shape in a hexagonal close-packed (HCP) structure coming from the corundum family members.
In this arrangement, oxygen ions create a thick lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites, leading to an extremely stable and durable atomic structure.
While pure alumina is in theory 100% Al Two O ₃, industrial-grade materials typically contain tiny portions of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y TWO O FOUR) to manage grain development throughout sintering and boost densification.
Alumina ceramics are categorized by pureness degrees: 96%, 99%, and 99.8% Al ₂ O two are common, with higher purity associating to improved mechanical residential properties, thermal conductivity, and chemical resistance.
The microstructure– especially grain size, porosity, and phase circulation– plays an important function in figuring out the last efficiency of alumina rings in service atmospheres.
1.2 Trick Physical and Mechanical Characteristic
Alumina ceramic rings display a suite of residential or commercial properties that make them essential popular industrial setups.
They possess high compressive strength (as much as 3000 MPa), flexural strength (commonly 350– 500 MPa), and superb solidity (1500– 2000 HV), enabling resistance to put on, abrasion, and deformation under load.
Their reduced coefficient of thermal growth (approximately 7– 8 × 10 ⁻⁶/ K) guarantees dimensional security across broad temperature level arrays, decreasing thermal tension and breaking during thermal cycling.
Thermal conductivity varieties from 20 to 30 W/m · K, relying on purity, allowing for moderate warmth dissipation– enough for lots of high-temperature applications without the requirement for energetic cooling.

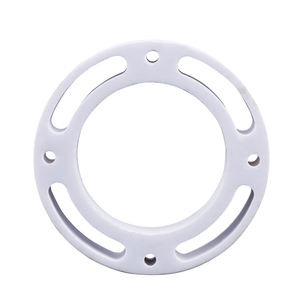

( Alumina Ceramics Ring)
Electrically, alumina is an impressive insulator with a quantity resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric toughness of around 10– 15 kV/mm, making it excellent for high-voltage insulation parts.
In addition, alumina shows excellent resistance to chemical strike from acids, antacid, and molten metals, although it is vulnerable to strike by strong alkalis and hydrofluoric acid at raised temperatures.
2. Manufacturing and Accuracy Engineering of Alumina Bands
2.1 Powder Processing and Shaping Methods
The production of high-performance alumina ceramic rings starts with the choice and prep work of high-purity alumina powder.
Powders are usually synthesized using calcination of aluminum hydroxide or through advanced techniques like sol-gel processing to accomplish great bit dimension and slim dimension circulation.
To create the ring geometry, several shaping methods are utilized, consisting of:
Uniaxial pushing: where powder is compressed in a die under high pressure to form a “green” ring.
Isostatic pressing: applying uniform stress from all directions utilizing a fluid tool, leading to higher thickness and more consistent microstructure, particularly for complicated or huge rings.
Extrusion: suitable for long cylindrical types that are later on reduced into rings, frequently utilized for lower-precision applications.
Injection molding: made use of for intricate geometries and tight tolerances, where alumina powder is blended with a polymer binder and injected into a mold.
Each method affects the last density, grain positioning, and defect distribution, demanding cautious procedure option based on application demands.
2.2 Sintering and Microstructural Development
After shaping, the eco-friendly rings undertake high-temperature sintering, typically in between 1500 ° C and 1700 ° C in air or controlled atmospheres.
Throughout sintering, diffusion mechanisms drive particle coalescence, pore removal, and grain growth, bring about a fully thick ceramic body.
The rate of home heating, holding time, and cooling profile are precisely regulated to avoid fracturing, bending, or exaggerated grain development.
Ingredients such as MgO are commonly introduced to prevent grain boundary mobility, resulting in a fine-grained microstructure that enhances mechanical strength and dependability.
Post-sintering, alumina rings might go through grinding and washing to achieve limited dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface coatings (Ra < 0.1 µm), critical for securing, bearing, and electrical insulation applications.
3. Functional Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely utilized in mechanical systems due to their wear resistance and dimensional stability.
Secret applications include:
Sealing rings in pumps and valves, where they withstand erosion from unpleasant slurries and corrosive liquids in chemical processing and oil & gas sectors.
Bearing elements in high-speed or harsh environments where metal bearings would certainly break down or need regular lubrication.
Overview rings and bushings in automation devices, offering low rubbing and lengthy service life without the need for oiling.
Use rings in compressors and wind turbines, minimizing clearance between rotating and stationary components under high-pressure conditions.
Their ability to keep performance in dry or chemically hostile environments makes them superior to lots of metallic and polymer alternatives.
3.2 Thermal and Electric Insulation Functions
In high-temperature and high-voltage systems, alumina rings work as vital shielding elements.
They are used as:
Insulators in heating elements and heating system components, where they sustain resistive cords while standing up to temperatures above 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, stopping electrical arcing while keeping hermetic seals.
Spacers and support rings in power electronic devices and switchgear, isolating conductive parts in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave devices, where their low dielectric loss and high break down toughness make certain signal honesty.
The combination of high dielectric stamina and thermal security allows alumina rings to work reliably in settings where natural insulators would degrade.
4. Material Developments and Future Overview
4.1 Compound and Doped Alumina Equipments
To additionally improve performance, scientists and makers are establishing innovative alumina-based compounds.
Instances consist of:
Alumina-zirconia (Al ₂ O ₃-ZrO ₂) compounds, which show enhanced fracture strength with improvement toughening devices.
Alumina-silicon carbide (Al two O ₃-SiC) nanocomposites, where nano-sized SiC particles boost solidity, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain limit chemistry to boost high-temperature toughness and oxidation resistance.
These hybrid materials expand the functional envelope of alumina rings into even more extreme problems, such as high-stress vibrant loading or quick thermal biking.
4.2 Arising Trends and Technical Combination
The future of alumina ceramic rings lies in wise combination and precision manufacturing.
Fads consist of:
Additive manufacturing (3D printing) of alumina components, making it possible for complex interior geometries and tailored ring layouts previously unattainable with standard techniques.
Useful grading, where structure or microstructure differs throughout the ring to maximize efficiency in various zones (e.g., wear-resistant external layer with thermally conductive core).
In-situ surveillance using ingrained sensors in ceramic rings for predictive upkeep in commercial machinery.
Increased usage in renewable resource systems, such as high-temperature fuel cells and focused solar power plants, where product integrity under thermal and chemical tension is vital.
As sectors require higher performance, longer life expectancies, and lowered upkeep, alumina ceramic rings will continue to play a crucial duty in making it possible for next-generation engineering services.
