1. Fundamental Structure and Product Composition

1.1 The Nanoscale Architecture of Aerogels

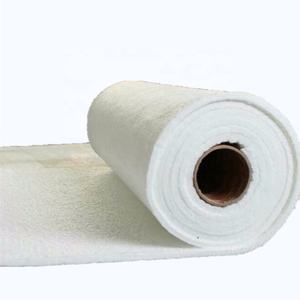

(Aerogel Blanket)

Aerogel blankets are advanced thermal insulation materials built upon an unique nanostructured framework, where a strong silica or polymer network spans an ultra-high porosity volume– usually exceeding 90% air.

This framework originates from the sol-gel procedure, in which a liquid precursor (frequently tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to develop a damp gel, complied with by supercritical or ambient stress drying out to remove the fluid without collapsing the fragile porous network.

The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) developing pores on the scale of 10– 50 nm, small enough to subdue air particle activity and thus reduce conductive and convective warmth transfer.

This sensation, called Knudsen diffusion, substantially minimizes the efficient thermal conductivity of the material, commonly to values between 0.012 and 0.018 W/(m · K) at area temperature level– among the lowest of any type of solid insulator.

Despite their low thickness (as reduced as 0.003 g/cm SIX), pure aerogels are inherently weak, requiring reinforcement for practical usage in versatile blanket form.

1.2 Support and Composite Design

To conquer frailty, aerogel powders or monoliths are mechanically incorporated into fibrous substrates such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that preserves exceptional insulation while getting mechanical effectiveness.

The enhancing matrix provides tensile strength, adaptability, and taking care of resilience, enabling the product to be cut, bent, and mounted in complicated geometries without significant performance loss.

Fiber material generally varies from 5% to 20% by weight, meticulously stabilized to minimize thermal bridging– where fibers perform warm across the covering– while making certain structural honesty.

Some progressed styles include hydrophobic surface area therapies (e.g., trimethylsilyl groups) to avoid dampness absorption, which can weaken insulation efficiency and promote microbial growth.

These adjustments enable aerogel coverings to keep steady thermal properties also in damp environments, broadening their applicability beyond regulated research laboratory problems.

2. Production Processes and Scalability

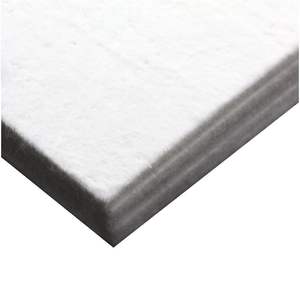

( Aerogel Blanket)

2.1 From Sol-Gel to Roll-to-Roll Production

The production of aerogel coverings begins with the development of a damp gel within a fibrous mat, either by impregnating the substrate with a liquid precursor or by co-forming the gel and fiber network simultaneously.

After gelation, the solvent have to be eliminated under conditions that stop capillary anxiety from breaking down the nanopores; traditionally, this called for supercritical CO ₂ drying, an expensive and energy-intensive procedure.

Recent advancements have actually made it possible for ambient pressure drying through surface area modification and solvent exchange, dramatically minimizing manufacturing costs and allowing continuous roll-to-roll production.

In this scalable process, long rolls of fiber mat are continuously covered with precursor remedy, gelled, dried out, and surface-treated, allowing high-volume outcome ideal for commercial applications.

This shift has been pivotal in transitioning aerogel coverings from particular niche laboratory materials to readily feasible products utilized in building and construction, energy, and transport sectors.

2.2 Quality Assurance and Efficiency Consistency

Making sure consistent pore structure, constant density, and trusted thermal efficiency throughout large manufacturing batches is crucial for real-world deployment.

Producers employ extensive quality control procedures, consisting of laser scanning for thickness variant, infrared thermography for thermal mapping, and gravimetric analysis for dampness resistance.

Batch-to-batch reproducibility is necessary, particularly in aerospace and oil & gas industries, where failure because of insulation failure can have serious effects.

Furthermore, standard testing according to ASTM C177 (heat flow meter) or ISO 9288 ensures precise coverage of thermal conductivity and enables reasonable comparison with typical insulators like mineral woollen or foam.

3. Thermal and Multifunctional Residence

3.1 Superior Insulation Across Temperature Level Varies

Aerogel blankets show exceptional thermal performance not only at ambient temperatures but also across extreme ranges– from cryogenic problems below -100 ° C to high temperatures exceeding 600 ° C, depending upon the base material and fiber kind.

At cryogenic temperatures, traditional foams may crack or lose efficiency, whereas aerogel coverings remain flexible and preserve low thermal conductivity, making them excellent for LNG pipelines and tank.

In high-temperature applications, such as industrial heaters or exhaust systems, they offer efficient insulation with reduced density compared to bulkier choices, conserving space and weight.

Their reduced emissivity and capacity to show convected heat additionally enhance performance in radiant obstacle arrangements.

This vast functional envelope makes aerogel coverings distinctly functional among thermal monitoring remedies.

3.2 Acoustic and Fire-Resistant Features

Past thermal insulation, aerogel blankets demonstrate remarkable sound-dampening buildings because of their open, tortuous pore framework that dissipates acoustic power through viscous losses.

They are significantly made use of in auto and aerospace cabins to lower noise pollution without including significant mass.

In addition, most silica-based aerogel blankets are non-combustible, achieving Class A fire rankings, and do not launch poisonous fumes when revealed to flame– vital for developing safety and security and public infrastructure.

Their smoke thickness is extremely low, boosting exposure throughout emergency situation discharges.

4. Applications in Market and Arising Technologies

4.1 Power Performance in Building and Industrial Systems

Aerogel coverings are transforming energy efficiency in design and commercial design by enabling thinner, higher-performance insulation layers.

In structures, they are utilized in retrofitting historic frameworks where wall surface thickness can not be raised, or in high-performance façades and windows to decrease thermal linking.

In oil and gas, they shield pipelines bring warm fluids or cryogenic LNG, reducing energy loss and protecting against condensation or ice development.

Their lightweight nature likewise lowers structural lots, particularly valuable in overseas systems and mobile devices.

4.2 Aerospace, Automotive, and Consumer Applications

In aerospace, aerogel blankets shield spacecraft from severe temperature level changes during re-entry and shield delicate instruments from thermal cycling precede.

NASA has actually utilized them in Mars rovers and astronaut fits for easy thermal policy.

Automotive makers integrate aerogel insulation right into electrical vehicle battery loads to prevent thermal runaway and boost security and effectiveness.

Customer items, consisting of exterior clothing, shoes, and camping gear, currently feature aerogel cellular linings for superior heat without mass.

As manufacturing prices decrease and sustainability enhances, aerogel coverings are poised to end up being conventional solutions in global efforts to decrease power consumption and carbon emissions.

Finally, aerogel blankets stand for a merging of nanotechnology and practical design, supplying unequaled thermal performance in an adaptable, durable style.

Their capability to conserve energy, area, and weight while preserving safety and environmental compatibility positions them as crucial enablers of lasting technology across diverse markets.
